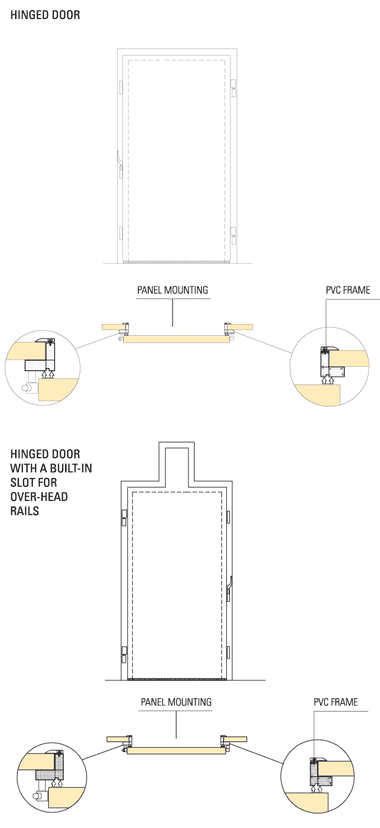

Hinged doors
» TYPES
Step-threshold / Flush-threshold
» INSULATION
ISO 3582 self extinguishing rigid polyurethane foam, CFC free
» DOOR PANEL
Edges: Anodised aluminium – AISI 304 stainless-steel by request
Facings: Smooth fibreglass - G.R.P glass-fiber reinforced polyester with gelcoat finishing suitable for use in the agri-foodstuff industry
Smooth pre-painted steel sheet
Smooth AISI 304 stainless-steel sheet
Thicknesses: mm 70 or 100 for NT / mm 100 or 150 for LT
Gaskets: black anti-aging rubber (EPDM)
Hinges: rising hinges, moulded from an anti-corrosion composite
Handles: internal and external handles are made from an anti-corrosion composite
» DOOR FRAME
Extruded L-shaped tubular PVC moulding with polyurethane foam filled chambers. If installed for use at low temperatures it also has a channel for fitting an appropriately protected electric heating cable.
» SECONDARY FRAME
Anodised aluminium moulded contact plate
Hinged doors are usually supplied with two or more hinges depending on the dimensions of the door panel. These rising hinges are made using composite materials, which means that they are excellent in terms of being corrosion proof and resilient at low temperatures. The use of rising hinges allows the door panel to be raised and lowered during opening and closing. This prevents excessive friction between the gasket and the floor, thus protecting the gasket from undue wear and tear, prolonging its life.
On the side of the door opposite the hinges, the main handle is installed and two additional fastening points are usually fitted.
On request, a handle with a lock and key can be supplied.
