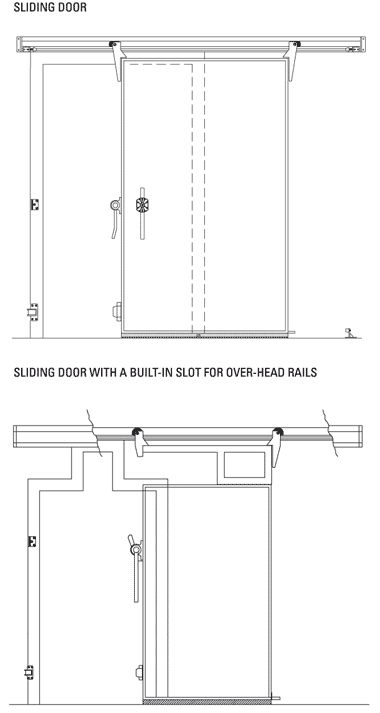

Sliding doors
[ Back to products page ]
Automatic device. In accordance with health and safety standards, a 0.33 HP three-phase geared motor is used.
Door traction: HTD polyurethane pull belt with steel insert.
Opening/closing speed: 30 cm/s. IP 65 control panel with electronic programmer under CPU control:
Scram button / Step-by-step opening and closing / Opening and closing timer (pause setting 3/80 sec) / Pedestrian passage opening (optional).
Format allows for the optional installation of:
a receiver for opening/closing by remote control, one or more micro-switches to control by pull chords.
Safety system:
15 kg rated torque relay on both directions of travel / Double chambered pneumatic safety edge, boxed pressure switch and spiral cable.
» TYPES
Manual slide / Automatic slide
» INSULATION
ISO 3582 self extinguishing rigid polyurethane foam, CFC free
» DOOR PANEL
Edges:anodised aluminium - AISI 304 stainless-steel by request
Facings: Smooth fibreglass - G.R.P glass-fiber reinforced polyester with gelcoat finishing suitable for use in the agri-foodstuff industry
Smooth pre-painted steel sheet
Smooth AISI 304 stainless-steel sheet
Thicknesses: 70 mm or 100 mm for NT / 100 mm or 150 mm for LT
Gaskets: black anti-ageing rubber (EPDM)
External handle: stainless steel operating lever with anodised aluminium opening mechanism
Internal handle: safety lever in stainless-steel
» DOOR FRAME
Extruded L-shaped tubular PVC moulding with polyurethane foam filled chambers. If installed for use at low temperatures it also has a channel for fitting an appropriately protected electric heating cable.
» SECONDARY FRAME
Anodised aluminium moulded contact plate
» SLIDING SYSTEM
Anodised aluminium bearer slide
Pre-painted steel cover sheet, available in stainless-steel by request
Pre-painted anodised aluminium sliding pulleys, with height and depth settings
Stainless-steel lower slide
» STAINLESS-STEEL DOOR-SILL
Supplied exclusively for use at low temperatures (encases the heating cable)
