Rigid swinging doors
» TYPES
Manual opening with or without door stops at 90°
» INSULATION
ISO 3582 self extinguishing rigid polyurethane foam, CFC free
» DOOR PANELS
Edges:anodised aluminium – AISI 304 stainless-steel by request
Facings: fibreglass - G.R.P glass-fiber reinforced polyester with gelcoat finishing suitable for use in agri-foodstuff industry
Pre-painted steel sheet
AISI 304 stainless-steel sheet
Thickness: 40 mm
Gaskets: black anti-aging rubber (EPDM)
Hinges: anti-corrosion composite with stainless steel supports and door stops at 90°; or stainless steel without door stops
Windows: one per door panel, dimensions 400x600 mm
» DOOR FRAME
Extruded self-bearing anodised aluminium moulding with half-rounded fillet
» SECONDARY FRAME
Anodised aluminium moulded contact plate

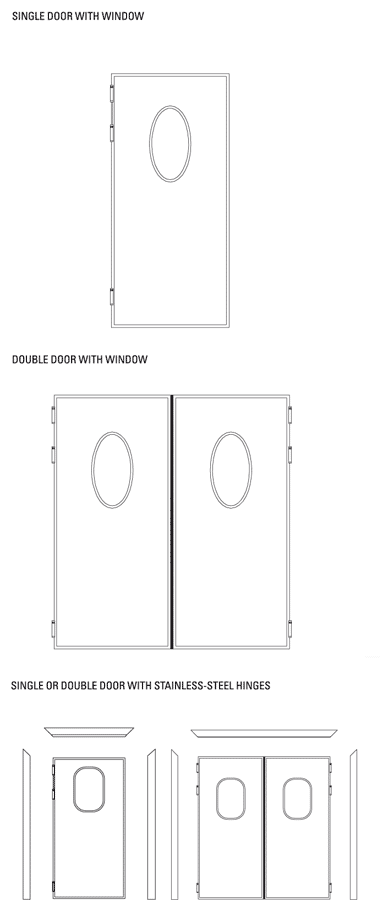

Available with single or double door panels. Swinging doors are normally used to connect different rooms at controlled temperatures, such as food processing rooms, packaging rooms, reception and shipping areas, corridors, sanitary facilities, dressing rooms, etc.
On request, swinging doors can be supplied with impact breaking safety devices, such as stainless-steel or aluminium strip reinforcement or shaped metal plates to prevent damage from impact with trolleys.
