IWL System
» MANUFACTURING PROCESS
Continuous cycle system
» INSULATION
Self-extinguishing expanded polystyrene
» EXTERNAL FACING
Pre-painted galvanised sheet metal (PV), smooth or micro-ribbed
Stainless steel sheet metal (IX)
» JOINTS
Dry tongue-and-groove joints
» APPLICATIONS
Refrigeration rooms and warehouses at positive or low temperatures for storing and preserving food, fruit and vegetables,
plants and flowers, medicines, frozen and deep-frozen, stockpiling and preservation of raw materials, etc.
» AVAILABLE THICKNESSES
40 / 60 / 80 / 100 / 120 / 150 / 180 / 200 / 240 mm
» PANEL HEIGHT
Up to the maximum transportable size

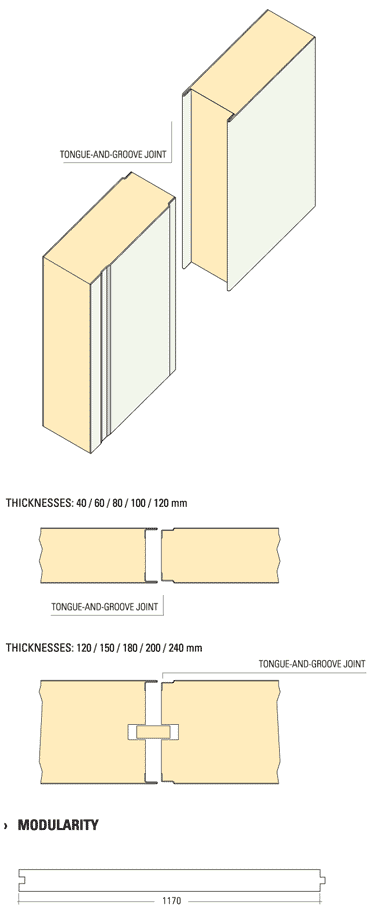

Dry tongue-and-groove joints guarantee perfect alignment and insulation continuity, with the best heat-preservation seal. This type of jointing, which does not require the coupling hooks, optimises installation costs and allows for rapid construction.
As to low-temperature applications, the same joint can be sealed or foamed during installation by injecting high-density polyurethane resins without the support of any other profiles. In this way the walls appear uninterrupted, giving the final product an aspect of continuity. Moreover, due to the special design of the joints, IWL panels can be easily reused if future extensions or modifications are necessary.
