GSC System

[ Back to products page ]

» MANUFACTURING PROCESS
Continuous cycle system

» INSULATION
ISO 3582 self extinguishing rigid polyurethane foam, CFC free

» EXTERNAL FACING
Pre-painted steel sheet
AISI 304 stainless-steel sheet

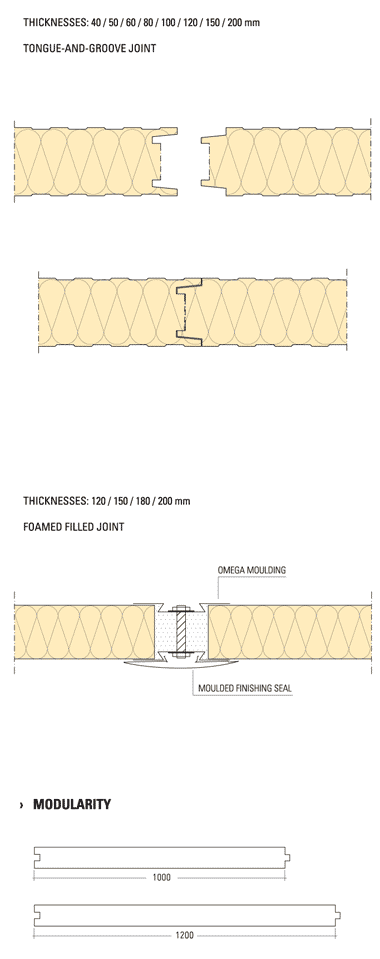

» JOINTS
Tongue-and-groove joint with sealing gasket

» APPLICATIONS
False ceilings, partitions, cold storage warehouses and rooms

» AVAILABLE THICKNESSES
40 / 50 / 60 / 80 / 100 / 120 mm

» PANEL HEIGHT
Maximum size is limited only by the logistics of transportation

The GSC system is particularly suitable for constructing large-scale false ceilings, partitions and cold storage warehouses and rooms at controlled temperatures. The tongue-and-groove joint system, which does not require coupling hooks, means that the GSC panels are quick and easy to assemble and can be produced at a contained cost.

These panels are also available for low temperature rooms or for erecting external walls of considerable height. Panels produced for these applications have moulded metal joints that are sealed during installation by injecting polyurethane foam.
Available thicknesses: 120 / 150 / 180 / 200 mm.
